Conveyor Type Blasting Machines

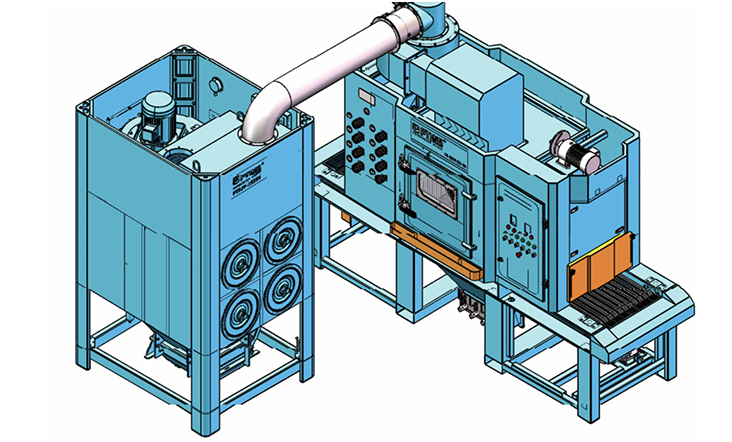

Intelligent conveyor sandblasting machine PT-ZBP-0625-8A

Product Description：

PTSF series intelligent conveyor sandblasting machines are economical sandblasting machines with a compact structure, small footprint, convenient installation, reliable operation, convenient maintenance and high integration.

Applications:

1. Applied to plane workpieces;

2. Home appliances, hardware, bathrooms, aluminum, aluminum plate;

3. Decorative plate, stainless steel plate, flat glass, etc.

Intelligent conveyor sandblasting machine PT-ZBP-0625-8A

PREV：Intelligent conveyor sandblasting machine PT-DXL-0625-12A

NEXT：No next article

Parameters

1. Technical advantages:

Safe, Efficient, Stable, Intelligent, and Environmentally Friendly.

2. Quality advantage:

Independently developed and manufactured, to ensure a high standard of quality control.

Adequate tests before mass production bring high stability.

3. Delivery advantages:

Standard packaging for easy transportation;

Sufficient stock of production materials;

Ready Stock for Standard models.

4. Comprehensive advantages:

More than 25, 000 square meters of production base.

More than 100 technicians serve in the R&D center and production department.

Device Parameters

Project	Specifications
Available size	Width 600 height 250 length 6000mm
Effective processing size	Width 500 height 250 length 6000mm
Spray gun model and quantity	PTB2 8pieces
Processing line speed	0.5-3.5m/min
Spray gun module type	Swing gun module
Product delivery type	V-belt/ roller/ roller
Dust removal parameters	3000-3600m³/h 2600Pa
Air source parameters	10 guns*1.3m³=13m recommend 15m³
Power parameters	380V, 50Hz 9KW
Device control method	Frequency Control
Grade and brand of electrical components	Schneider
Applicable abrasive	10-120# non-metal/ metal abrasive
Abrasive initial input amount	100-150kg
Total weight of equipment	1200kg
Host size	378113733790

Accessory Data

	Abrasive Recycle System	Wind Recovery
		Bucket Recovery
	Spray Mechanism	Rotary Module
		Pendulum Gun Module
		Stepper Module

	Conveyor	Belt Conveyor
		Roller Conveyor
		Crawler Conveyor
	Effective Width	80CM
		100CM
		150CM

	Effective Height of Processing Parts	25CM
		30CM
		45CM
	Number of Spray Guns	8
		16
		32

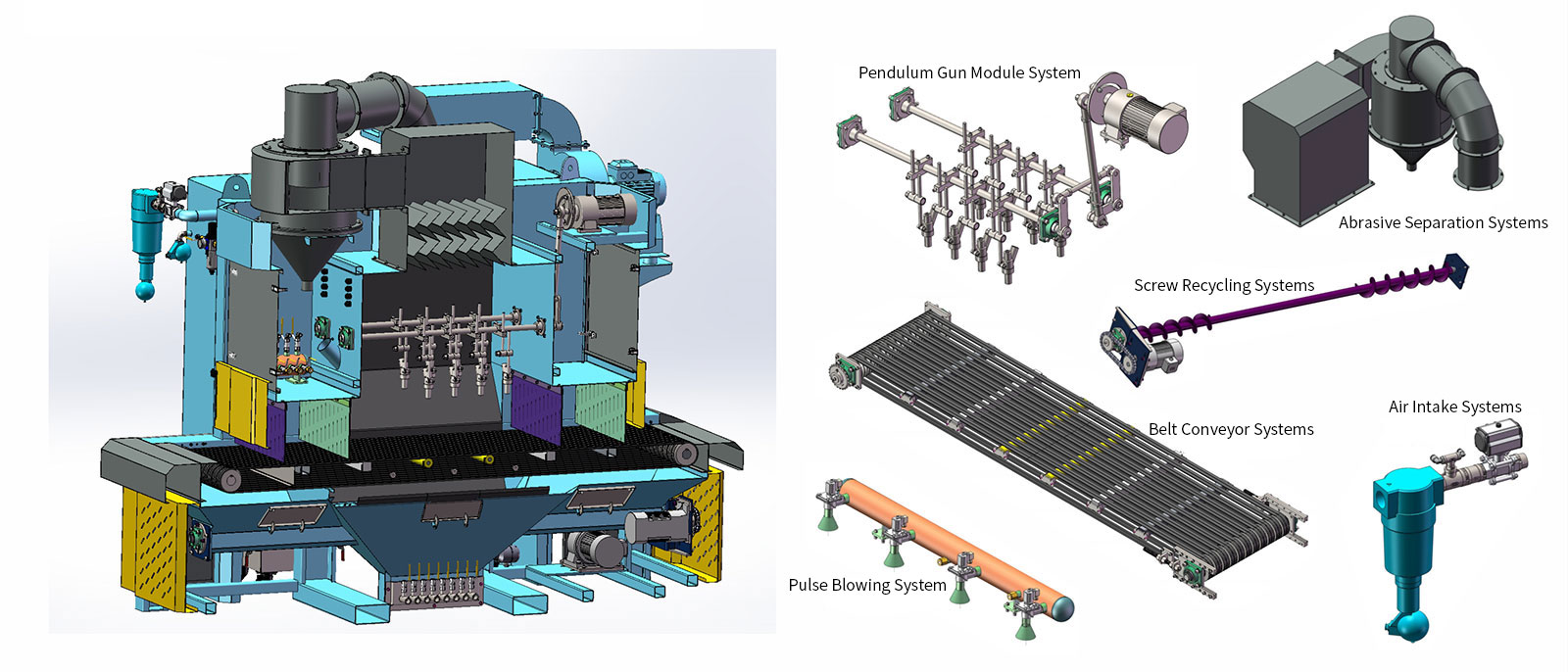

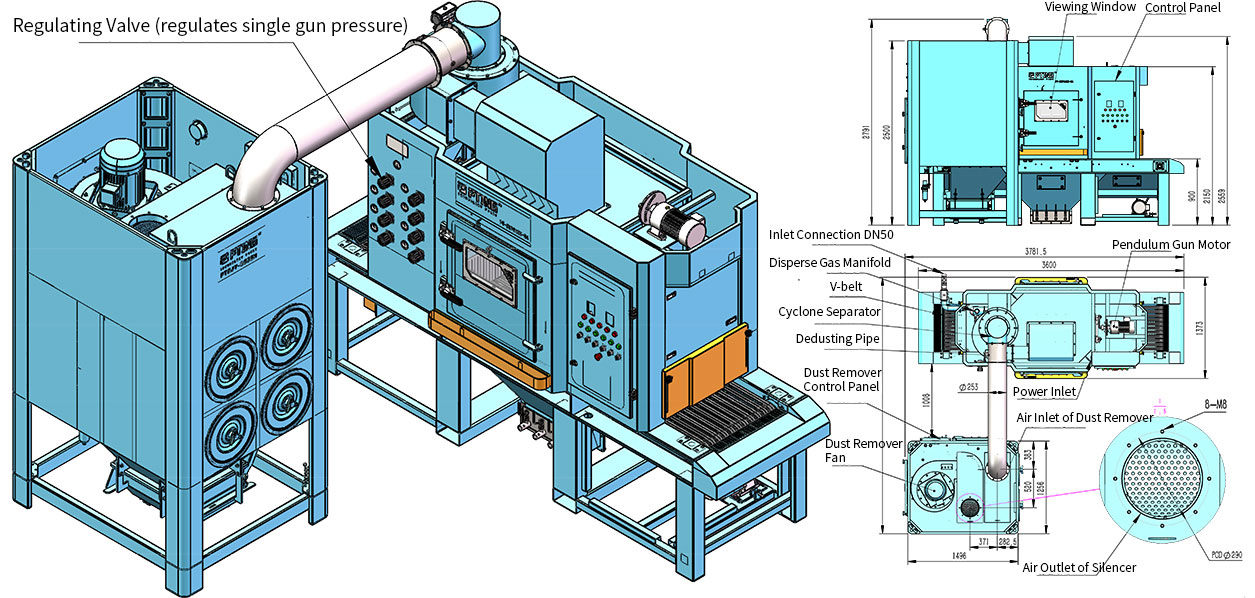

Equipment Structure Size

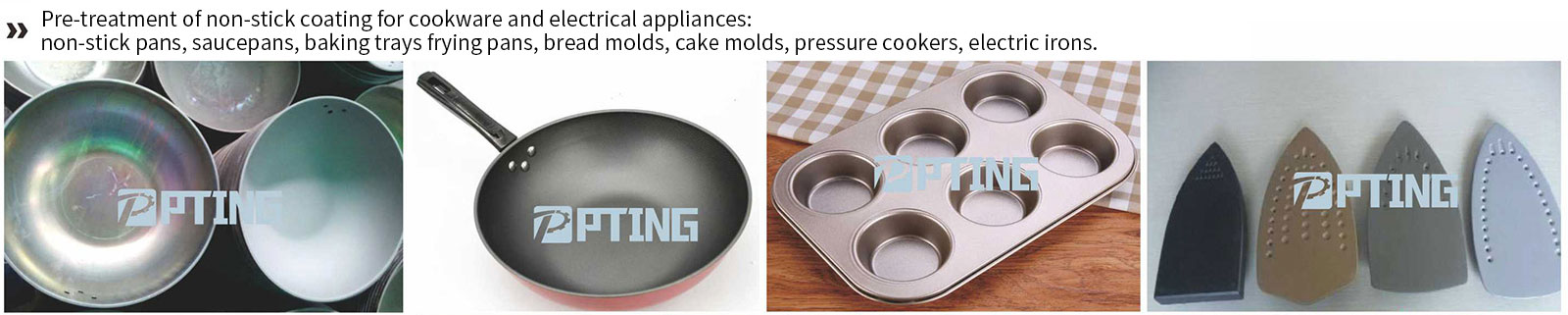

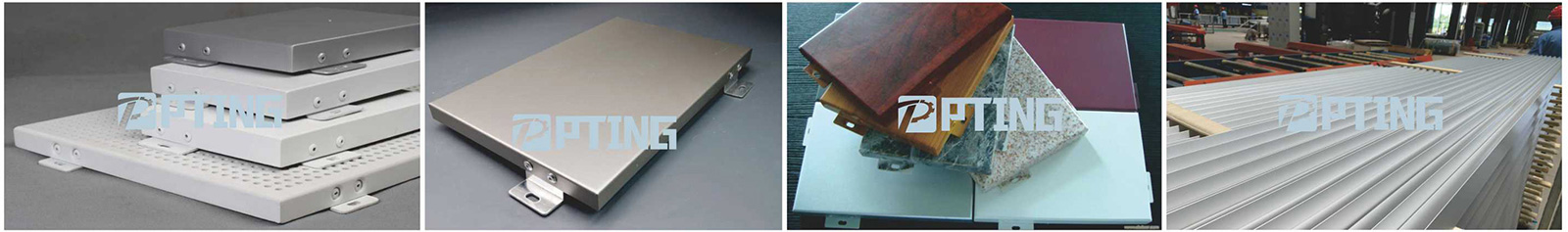

Product Application Field

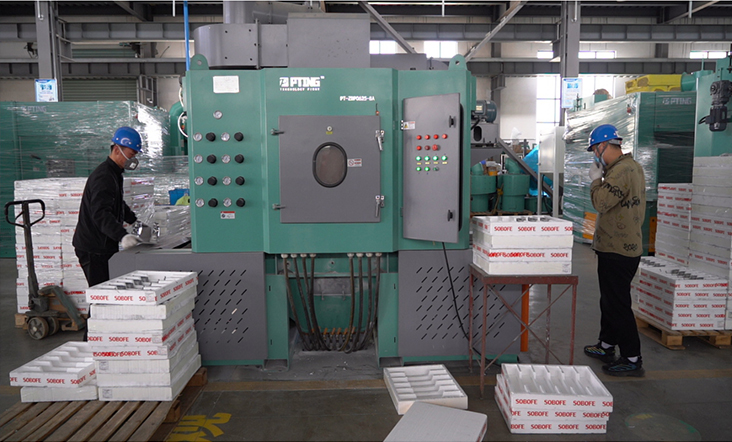

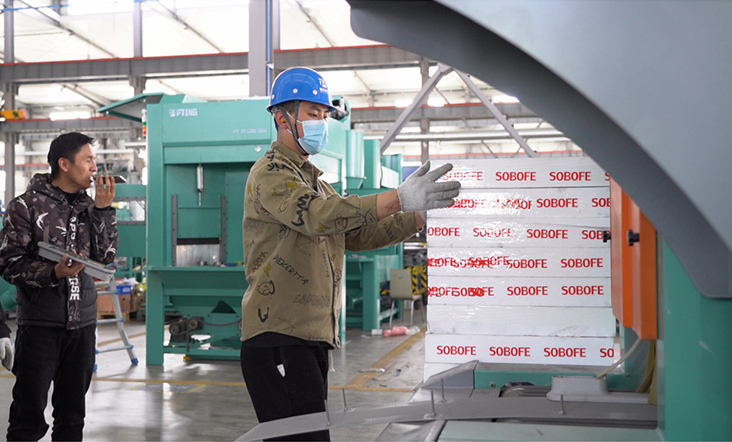

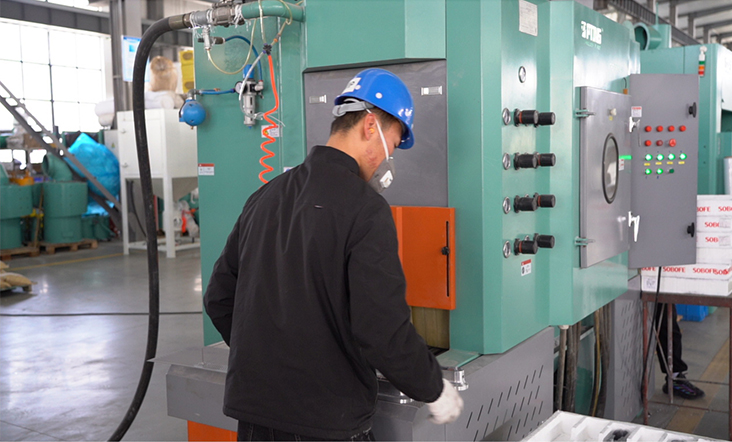

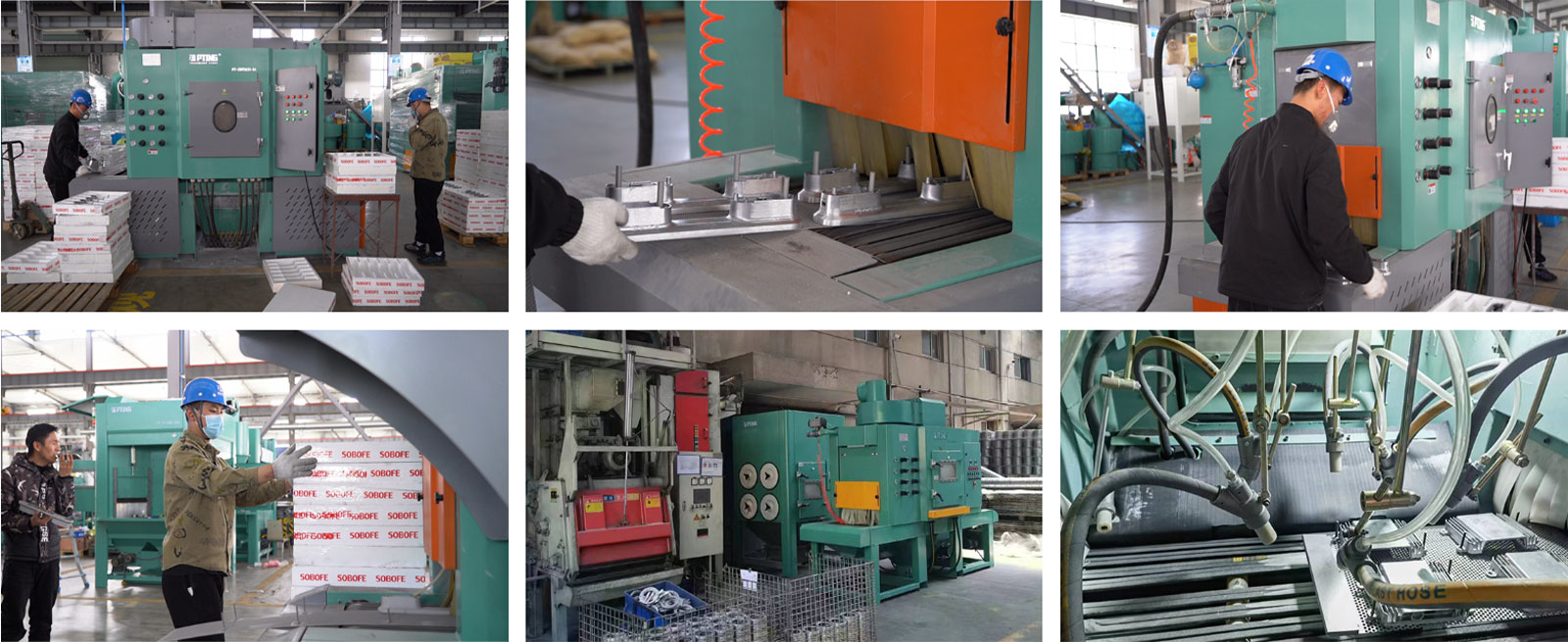

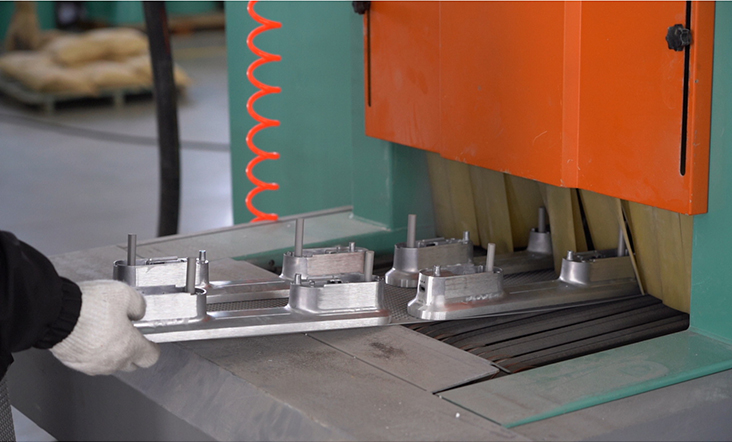

User Scenario

Contact Us

Coming From China,
Marketing To The World.

PTING Technology, founded in 2005, is a well-known domestic brand of surface treatment and environmental protection equipment system solutions. As China Intelligent conveyor sandblasting machine PT-ZBP-0625-8A Suppliers and Wholesale Intelligent conveyor sandblasting machine PT-ZBP-0625-8A Factory, it is committed to the R&D and manufacturing of process technology and equipment in the field of industrial surface treatment and environmental treatment. The enterprise has passed the ISO9001 quality system certification. The R&D and manufacturing base, with a building area of 25000 square meters, is located in Ningbo, China. With PTING's global overseas center in Singapore and more than 20 national offices, PTING Technology has provided surface treatment equipment, environmental protection equipment and process technology services to more than 2000 users worldwide. Users are widely distributed in: home appliance manufacturing, digital electronics, auto parts manufacturing, hardware and bathroom, new materials, new energy, rail transit, aerospace, petrochemical power, marine engineering, heavy industry equipment, agricultural machinery, engineering machinery Furniture manufacturing, etc.

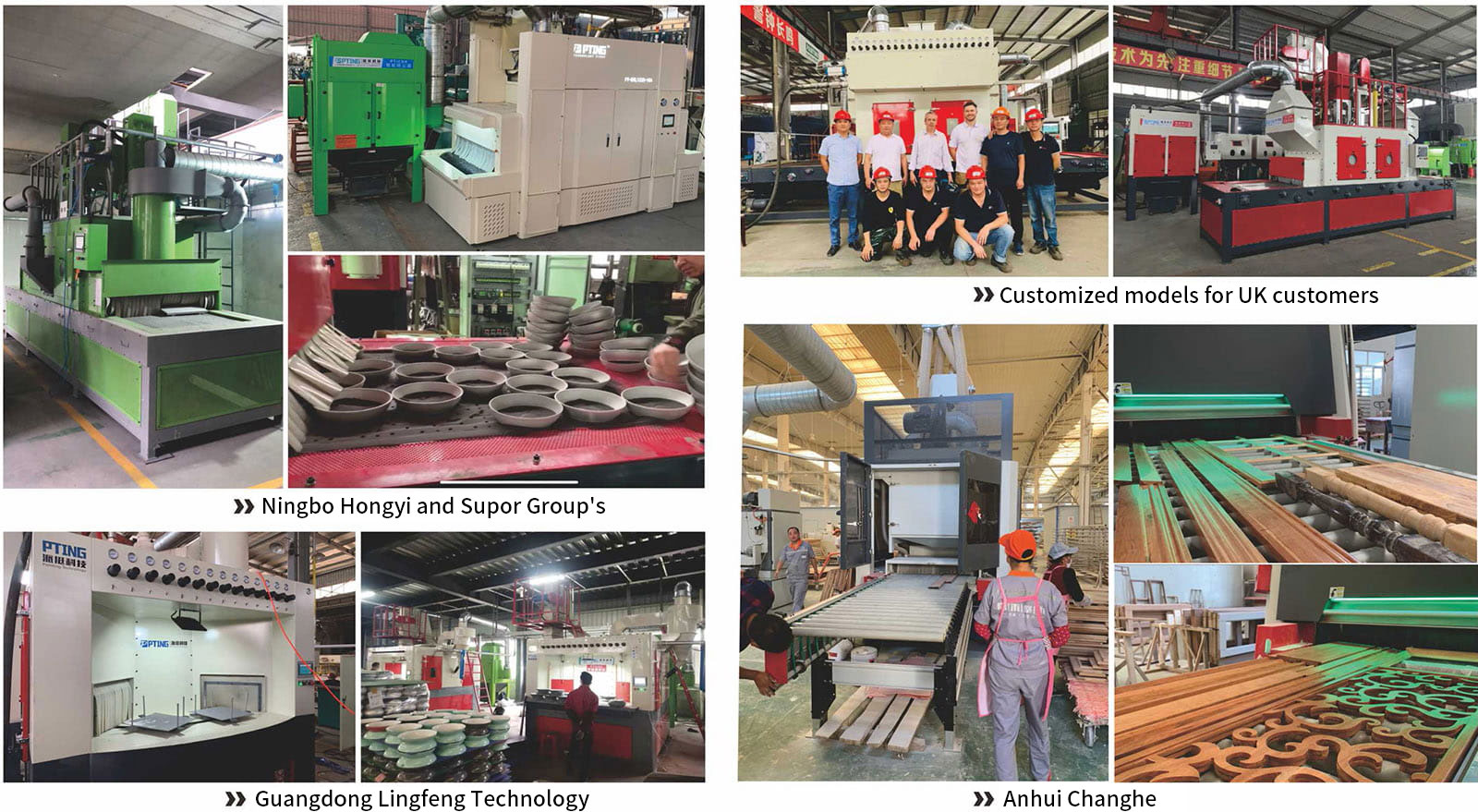

Visit The Factory.
